SuperPro Diff Differential Drop Kit For Toyota Hilux KUN26R, GUN125, GUN126 - TRCHILUXDD
Out of Stock
MPN: TRCHILUXDD
Pre-Order:
This product has been discontinued - This product has been replaced by the following:
RRP | £86.26
Will this part fit my car?
This part is compatible with your current selected vehicle
This part is not compatible with your current selected vehicle
Your Current Vehicle
Product Overview
Suits Lifted vehicles. The kit has been designed in such a way that allows the original bash plate to be refitted. It is supplied complete with all required spacers, bolts, washers and nuts. When lifting the 2005-to-current model Hilux 4WD, the Constant Velocity (CV) joints are put on an increased angle, helping to accelerate the wear on the joint and putting additional stress on the CV boots that will lead to splitting and premature failure of the CV. This wear is accelerated further if larger & wider wheels and tyres are fitted. The SuperPro bolt on kit corrects the geometry of the front axles and CV's by lowering the front diff approximately 25mm. Reducing the angles the CV joints are operating at will help avoid the expensive replacement costs of CV's and boots. SuperPro offers a lifetime warranty on all Polyurethane products and a 3 year or 36,000 mile warranty on all metal products, end links and ball joints. This warranty covers the cost of replacing the parts in the case of manufacturing defects, material defects and is subject to a Fair Use assessment.
When lifting the 2005 to current model Hilux 4WD, the Constant Velocity (CV) joints are put on an increased angle, helping to accelerate the wear on the joint and putting additional stress on the CV boots that will lead to splitting and premature failure of the CV.
The SuperPro bolt on kit corrects the geometry of the front axles and CV's by lowering the front diff approximately 25mm.
Reducing the angles the CV joints are operating at will help avoid the expensive replacement costs of CV's and boots.
This wear is accelerated further if larger & wider wheels and tyres are fitted.

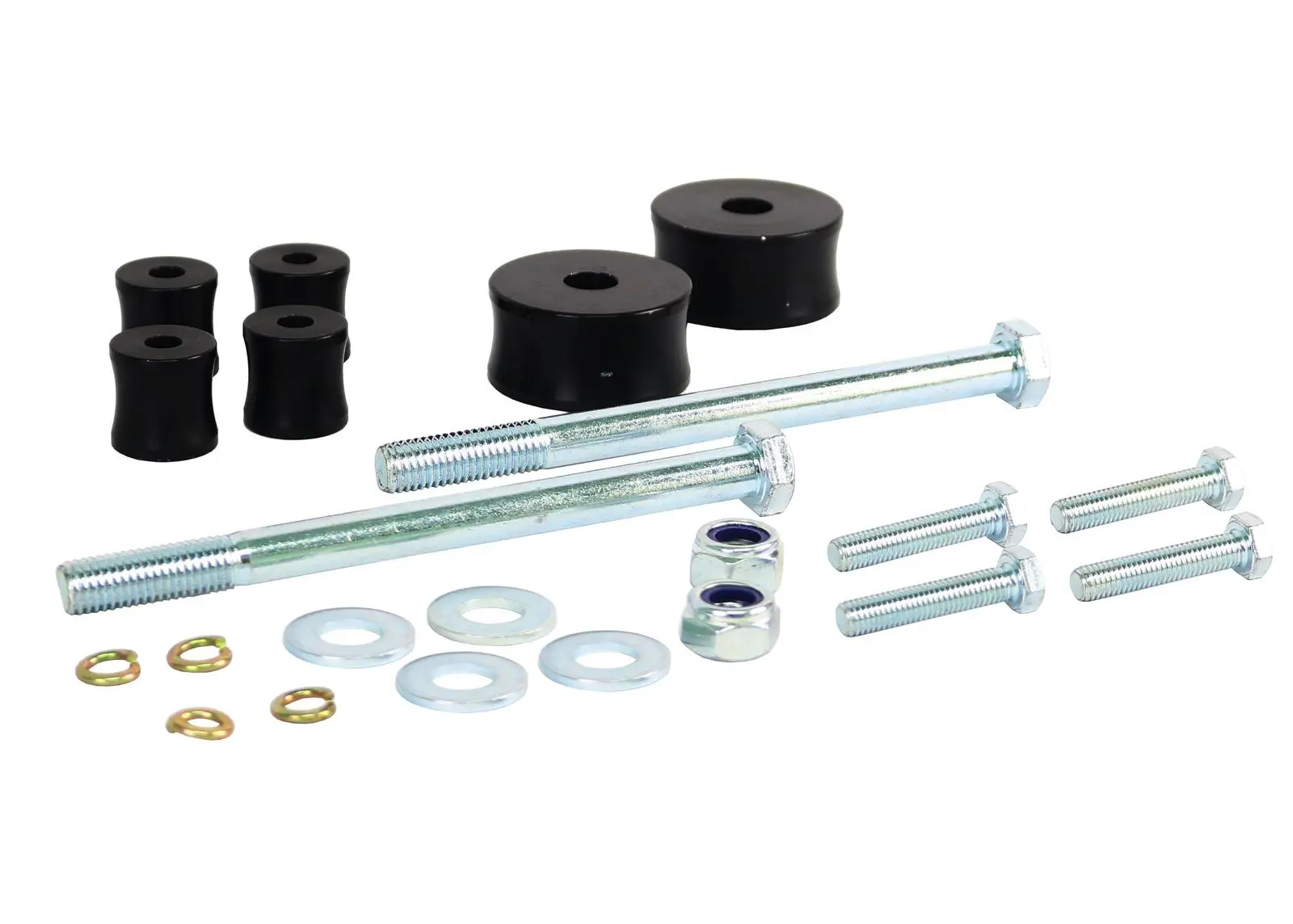

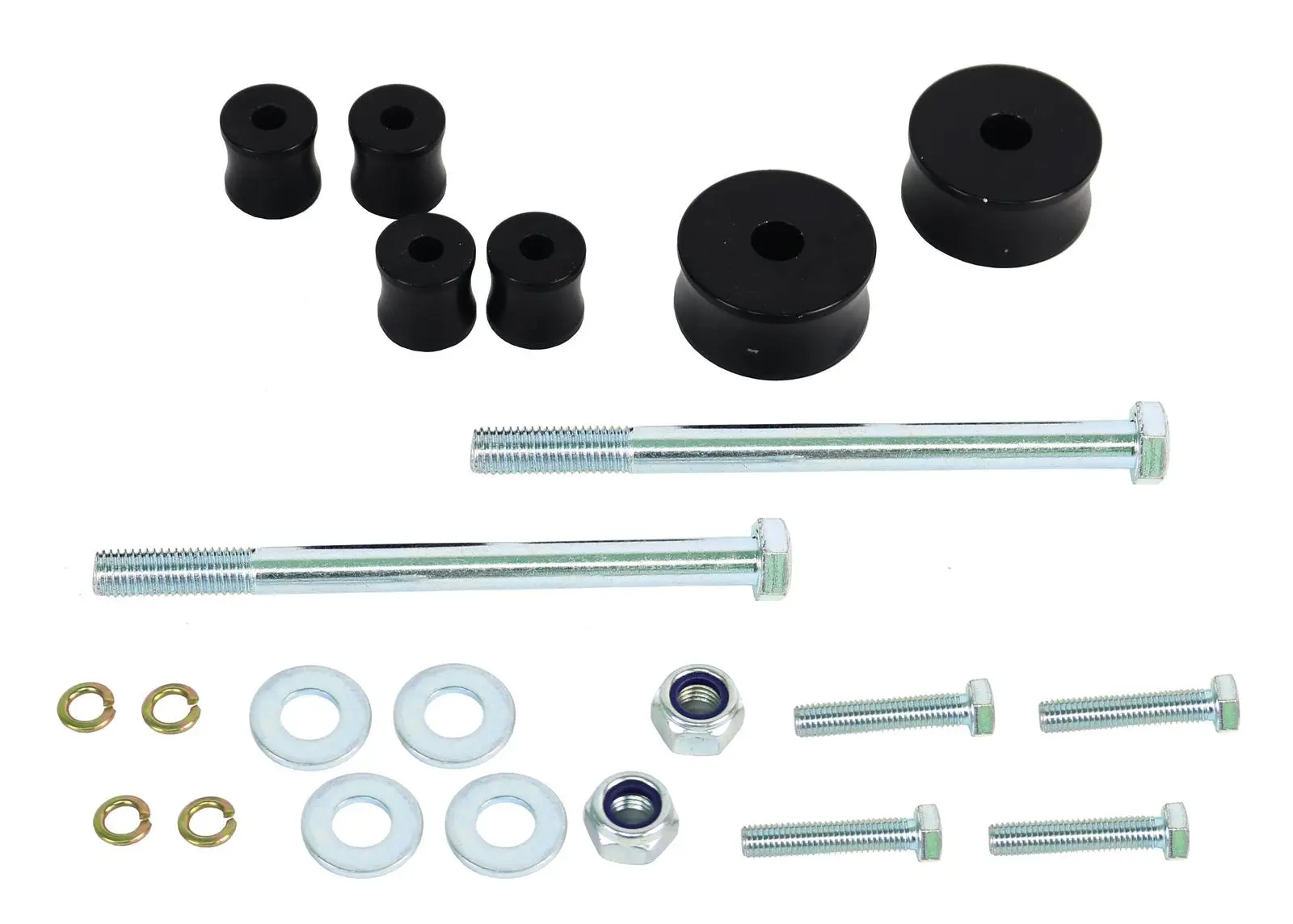

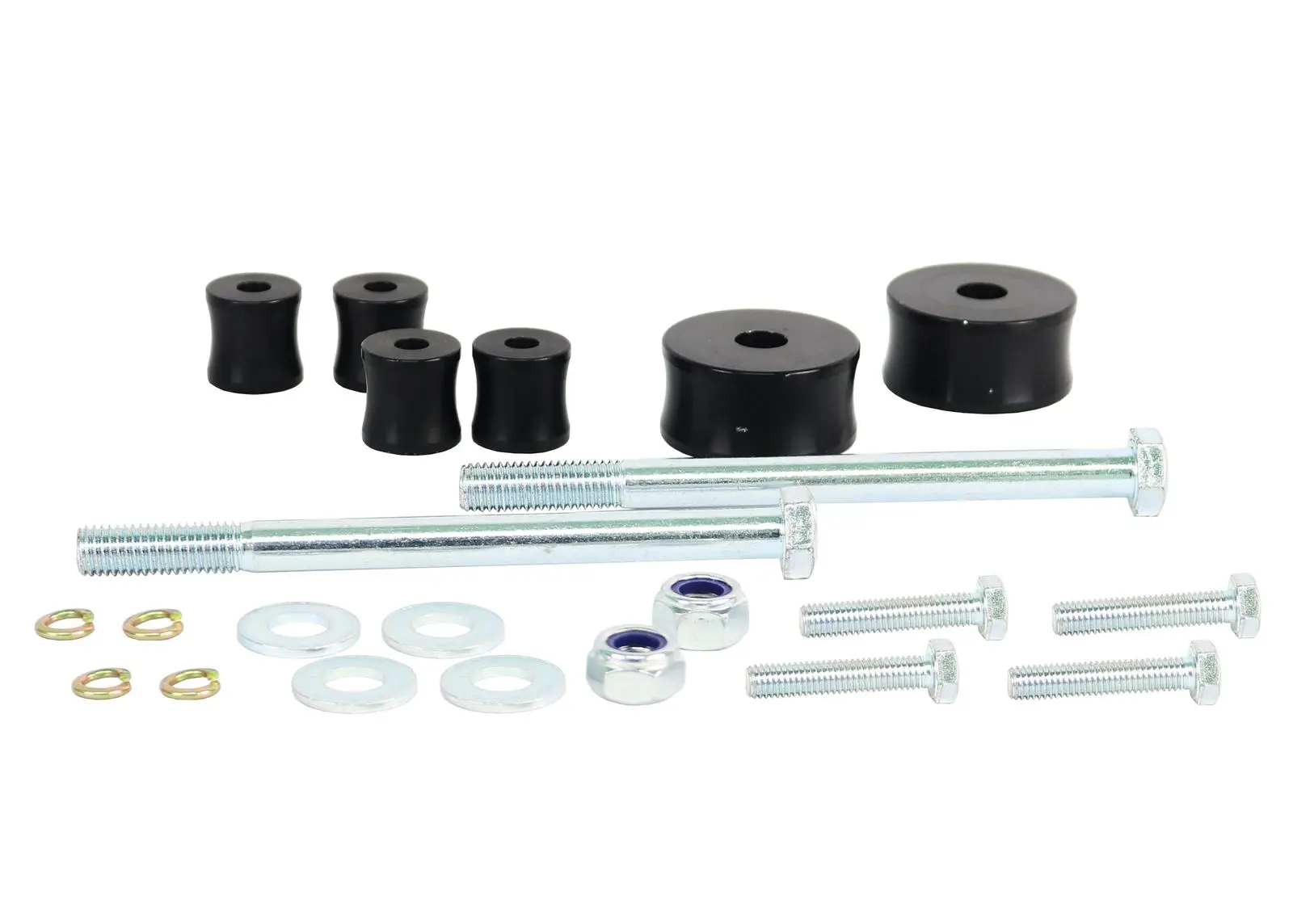

KIT Includes
- 6 x Spacers
- 6 x Bolts
- 8 x Washer(s) - used for Steel
- 2 x Nuts
