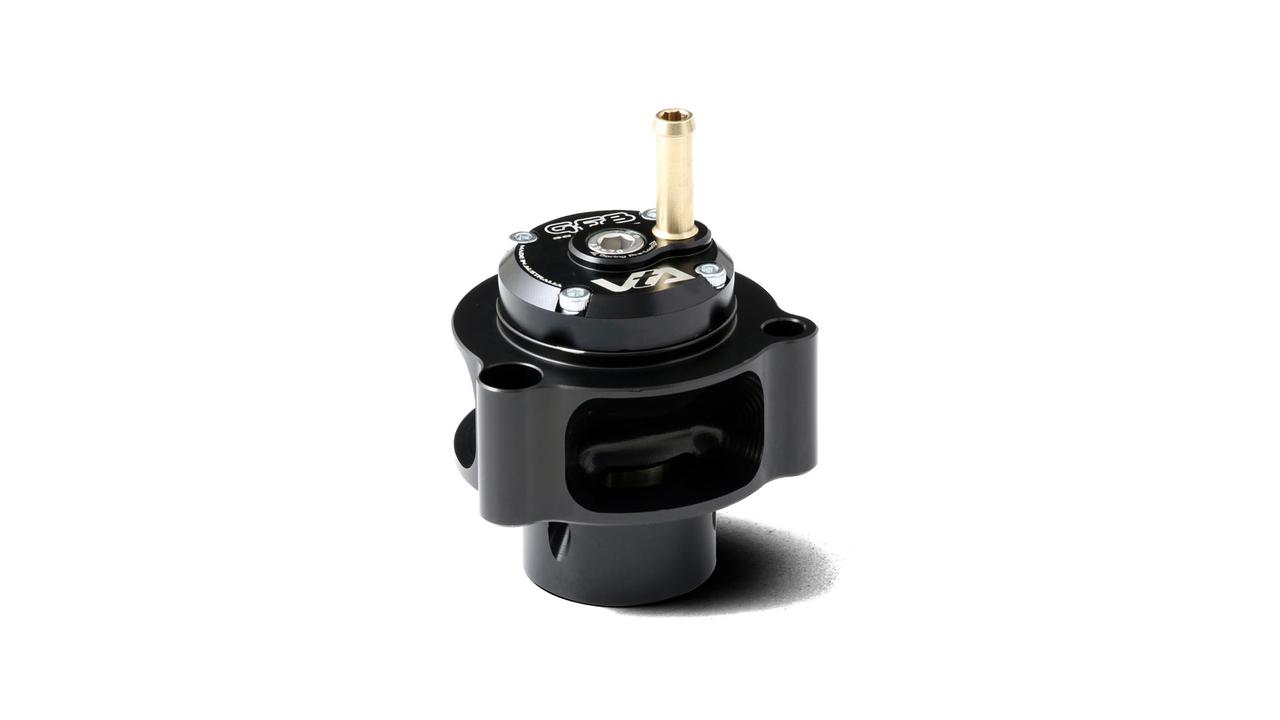

VTA Blow Off Valve Ford Focus ST - T9454
In Stock
MPN: T9454
Pre-Order:
This product has been discontinued - This product has been replaced by the following:
RRP | £163.80
Will this part fit my car?
This part is compatible with your current selected vehicle
This part is not compatible with your current selected vehicle
Your Current Vehicle
Product Overview
VTA Blow Off Valve Ford Focus STNotesDV+ Performance with Blow-Off Valve Sound!
-->
If you want sound with your performance (or performance with your sound!), GFB’s VTA delivers just that! By combining the proven performance benefits of our ground-breaking DV+ with atmosphere venting, the VTA delivers an aggressive blow-off sound, improved throttle response and boost recovery, as well as superior boost holding and reliability in extreme conditions.
The factory diverter valve commonly found on these turbos has two distinct issues – reliability, and performance. Oh yeah, it also doesn’t make any noise. Here’s how the VTA addresses these problems.
Reliability – There are two ways in which the factory diverter valve can fail; the un-reinforced rubber diaphragm can rupture, and the metal valve stem that slides in the plastic cap can stick. In both cases, there is a risk to the turbocharger, as the ECU will attempt to compensate for a boost leak by increasing the wastegate duty cycle, which increases the turbo RPM significantly.
The VTA features CNC machined billet components that last a lifetime and cannot be damaged by high boost pressures or the associated increased charge temperatures.
Performance – The factory diverter valve typically operates in only two states – either fully open, or fully closed. When it opens at low boost, or during a partial throttle lift mid-corner, it causes increased lag and a noticeably non-linear boost transition, which is noticeable as a distinct “step” down in power as you roll off the throttle and the valve opens.
The VTA however allows the piston to open and close progressively in response to the amount of boost pressure present, so it only vents enough air to prevent compressor surge (the primary purpose of a diverter or blow off valve). This helps to smooth out boost transitions, making the throttle response more linear and predictable, and also minimizes lag introduced by the factory diverter valve.
VTA or DV+? Depends if you want sound or not. Both valves are constructed with the same quality materials and valve mechanism, and both offer the same performance and reliability benefits. However, the VTA vents to atmosphere for sound whilst the DV+ recirculates the air to keep it quiet.
Why choose a VTA over a “BOV spacer”? “BOV spacers” are cheap and they make sound. But that’s it. All the inherent performance and reliability issues you get with the factory diverter valve remain, because a spacer doesn’t change the factory diverter components or operation method in any way. The VTA improves the operation of the factory diverter valve for sound AND performance.
NotesDV+ Performance with Blow-Off Valve Sound!Item Specifics Adjustment Adjustment Range Air Filter Type Bar Diameter BHP Gain Bolt Pattern Number of Holes Bolts/Nuts BrandGFB Carset Number Centre bore Classic Car Part Color Country of Manufacture Diagram Dimensions Dimensions (mm) Driver Wiper BLade Length Driver Wiper BLade Part No EAN Engine Equivalent Part Number FitsFits2 Fitting position Front Adjustment Front Adjustuble Front Axle Load Front Diameter Front L/H Front Low Front Lowering or Lifting Front R/H Height Hex Homologation Lengt Length Location on Car Lowering Front/Rear Manufacturer part Number Material MPNT9454 Number Of Gloves Offset frontier Other Part Number Pack Part Manufacturer Part Manufacturer Number Part Type Placement on Vehicle Position on Car Product Details Pssngr Wiper BLade Length Pssngr Wiper BLade Part No Quantity Rear Adjustment Rear Adjustuble Rear Axle Load Rear Diameter Rear L/H Rear Low Rear Lowering or Lifting Rear R/H Reference OE/OEM Number Scent Seat Series Size Spare Part Marking Spare part marking 1 Spare part marking2 Spare part marking3 Stamping System Thread Torque Gain Total Track widening (mm Type Unit Type Weight Wiper BLade Length NotesDV+ Performance with Blow-Off Valve Sound!
Aircon notes Eibach notes PIAA notes Superpro notesDV+ Performance with Blow-Off Valve Sound!
